🤖 Agentic RAG Chatbot for Multi-Format Document QA

An intelligent chatbot system built with an agentic architecture that can process multiple document formats and answer questions using Retrieval-Augmented Generation (RAG) with Model Context Protocol (MCP) for inter-agent communication.

🏗️ Architecture Overview

This system implements a multi-agent architecture with three specialized agents:

• IngestionAgent: Parses and preprocesses documents across multiple formats
• RetrievalAgent: Handles embedding generation and semantic retrieval using FAISS
• LLMResponseAgent: Generates contextual responses using Google Gemini 2.0 Flash
• CoordinatorAgent: Orchestrates the entire pipeline and manages agent interactions

Model Context Protocol (MCP)

All agents communicate through structured MCP messages with trace ID tracking for complete observability:

{
  "sender": "RetrievalAgent",
  "receiver": "LLMResponseAgent",
  "type": "CONTEXT_RESPONSE",
  "trace_id": "abc-123",
  "payload": {
    "retrieved_context": ["...", "..."],
    "query": "What are the KPIs?"
  }
}

📁 Project Structure

agentic-rag-chatbot/
├── agents/
│   ├── ingestion_agent.py      # Document parsing and preprocessing
│   ├── retrieval_agent.py      # Vector store and semantic search
│   └── llm_response_agent.py   # Response generation with Gemini
├── core/
│   ├── mcp_protocol.py         # Model Context Protocol implementation
│   ├── document_parser.py      # Multi-format document parsers
│   └── vector_store.py         # FAISS-based vector store
├── ui/
│   └── streamlit_app.py        # Streamlit web interface
├── uploads/                    # Uploaded documents storage
├── outputs/                     # Screenshots and outputs
│   ├── homepage.png
│   ├── upload_docs.png
│   └── chat_response.png
├── main.py                     # Main coordinator and entry point
├── requirements.txt            # Python dependencies
└── README.md                   # This file

✨ Features

📄 Multi-Format Document Support

• ✅ PDF - Extracts text from all pages
• ✅ PPTX - Processes PowerPoint slides and text
• ✅ DOCX - Handles Word documents and paragraphs
• ✅ CSV - Parses tabular data with intelligent chunking
• ✅ TXT/MD - Plain text and Markdown files

🤖 Intelligent Agent System

• Agentic Architecture: Independent agents with specialized responsibilities
• MCP Communication: Structured message passing between agents
• Trace Tracking: Complete observability with unique trace IDs
• Error Handling: Robust error management across all agents

🔍 Advanced Retrieval

• Semantic Search: Using SentenceTransformers for embedding generation
• FAISS Vector Store: High-performance similarity search
• Contextual Chunking: Intelligent text segmentation with overlap
• Relevance Scoring: Confidence scores for retrieved context

💬 Interactive Chat Interface

• Multi-turn Conversations: Maintains chat history
• Source Attribution: Shows which documents were used for answers
• Real-time Processing: Live status updates during document processing
• System Management: Clear system state and restart functionality

🚀 Installation & Setup

Prerequisites

• Python 3.8+
• Google Gemini API Key

1. Clone the Repository

git clone <https://github.com/chakrikaguttameedi/agentic-rag-chatbot>
cd agentic-rag-chatbot

2. Install Dependencies

pip install -r requirements.txt

3. Environment Configuration

Create a .env file in the root directory:

GEMINI_API_KEY=your_gemini_api_key_here

4. Run the Application

streamlit run ui/streamlit_app.py

The application will be available at http://localhost:8501

📋 Dependencies

streamlit==1.28.1
google-genai==0.3.0
faiss-cpu==1.7.4
sentence-transformers==2.2.2
PyPDF2==3.0.1
python-pptx==0.6.21
python-docx==0.8.11
pandas==2.0.3
openpyxl==3.1.2
chromadb==0.4.15
pydantic==2.4.2
typing-extensions==4.8.0
python-dotenv==1.0.0

🔄 System Workflow

1. Document Upload: User uploads documents through Streamlit interface
2. Ingestion: IngestionAgent parses documents and creates text chunks
3. Vector Store: RetrievalAgent builds FAISS index with embeddings
4. Query Processing: User asks questions via chat interface
5. Retrieval: RetrievalAgent finds relevant document chunks
6. Response Generation: LLMResponseAgent uses Gemini to generate answers
7. Display: Results shown with source attribution

MCP Message Flow Example

User Query → CoordinatorAgent → RetrievalAgent → LLMResponseAgent → Response
     ↓              ↓                ↓               ↓
   trace_id    RETRIEVAL_REQ    CONTEXT_RESP   RESPONSE_COMPLETE

📊 Outputs

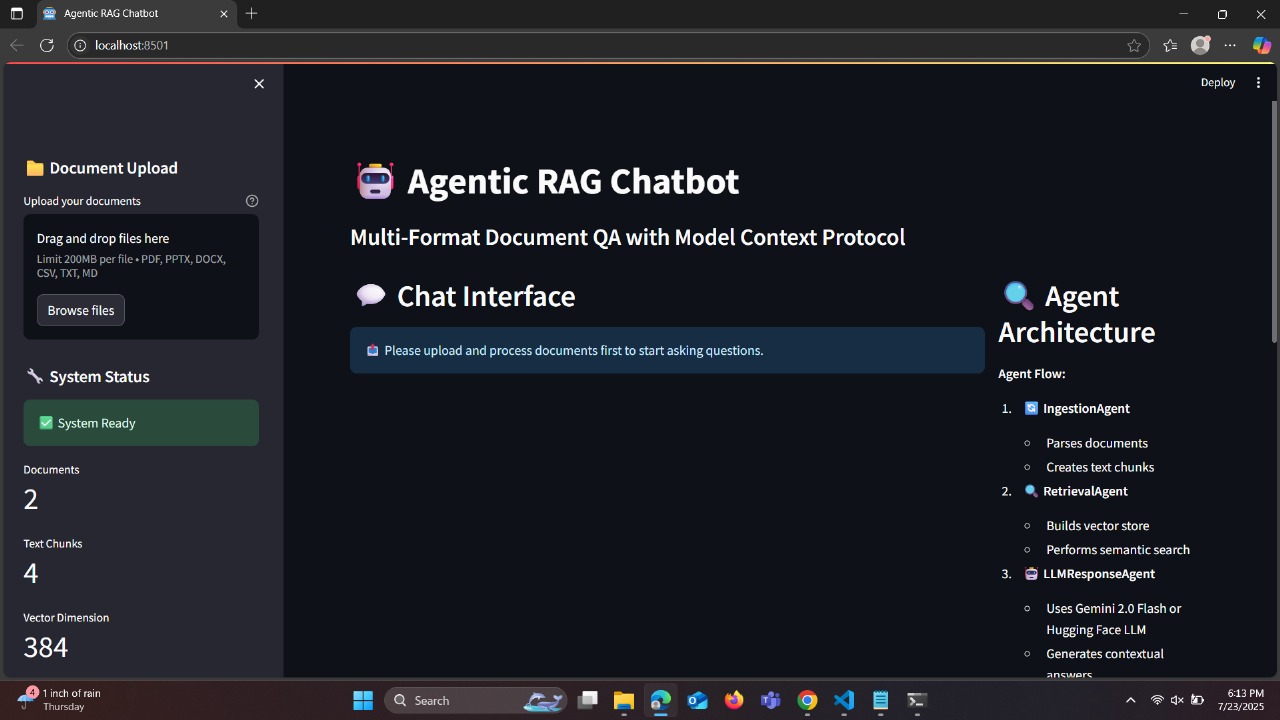

Homepage Interface

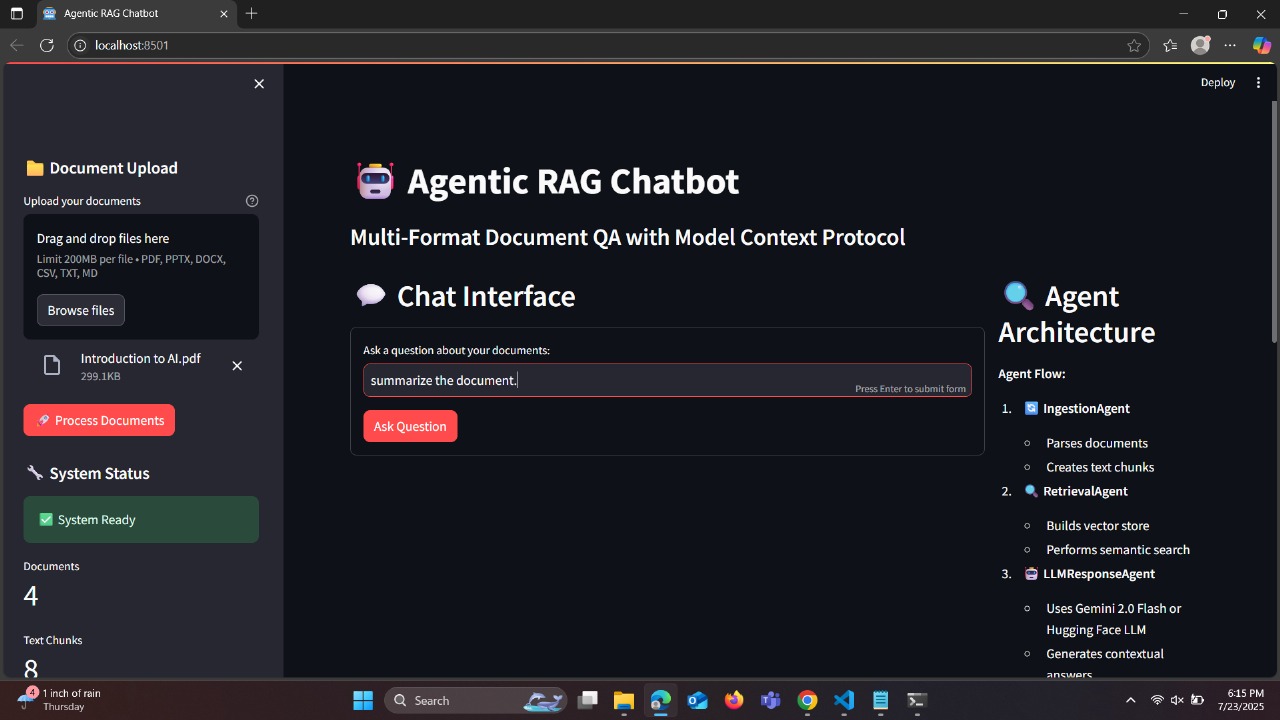

Document Upload Process

Chat Response with Sources

🛠️ Tech Stack

• Backend: Python, Custom Agent Coordination
• LLM: Google Gemini 2.0 Flash
• Vector Database: FAISS
• Embeddings: SentenceTransformers (all-MiniLM-L6-v2)
• Frontend: Streamlit
• Document Processing: PyPDF2, python-pptx, python-docx, pandas
• Communication: Custom MCP implementation

🔧 Configuration

Embedding Model

The system uses all-MiniLM-L6-v2 by default. To change:

# In vector_store.py
vector_store = VectorStore(model_name="your-preferred-model")

Chunk Size

Modify chunking parameters in document_parser.py:

chunks = self._create_chunks(content, chunk_size=500, overlap=50)

Retrieval Parameters

Adjust search parameters in retrieval calls:

results = self.vector_store.search(query, top_k=5)

🧪 Testing

Test LLM Connection

python main.py

Test Individual Agents

from agents.ingestion_agent import IngestionAgent
agent = IngestionAgent()
# Test document processing

🚧 Challenges Faced

1. Multi-format Parsing: Handling different document formats with consistent chunking
2. MCP Implementation: Designing efficient message passing between agents
3. Vector Store Management: Optimizing FAISS performance for real-time search
4. Error Handling: Ensuring robust error management across the agent pipeline
5. Memory Management: Handling large documents without memory overflow

🔮 Future Improvements

• Persistent Storage: Add database support for chat history
• Advanced Chunking: Implement semantic chunking strategies
• Multi-language Support: Add support for non-English documents
• Agent Monitoring: Enhanced logging and monitoring dashboard
• Scalability: Distributed agent architecture for high-volume processing
• Security: Add user authentication and document encryption

🤝 Contributing

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Add tests if applicable
5. Submit a pull request

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

📞 Support

For questions or issues, please:

1. Check existing issues in the repository
2. Create a new issue with detailed description
3. Include error logs and system information

Developed by Chakrika Guttameedi using Agentic Architecture and Model Context Protocol.

For a complete walkthrough of the system, watch the demo video above! 🎬
