🙂 AIFace — Add some emotion to your LLM (MCP + Render Display)

AI agent → MCP → your phone renders a live face avatar (emotion in real time).

Architecture · Emotional Interface · MCP Server · Render Display

What it is

AIFace is a 2-part system:

• Render display client (Kotlin Multiplatform) — a passive renderer that runs a WebSocket server at ws://<phone-ip>:8765/ and advertises itself on LAN via mDNS (_ai-face._tcp).
• MCP server (Node.js/TypeScript) — exposes a small tool surface to an LLM (e.g. Claude Desktop), discovers displays via mDNS, then sends Scene DSL updates to the selected display.

The goal: your agent can drive an expressive, real-time face avatar without the mobile app making any “meaning” decisions.

Quick start (Android + Claude Desktop)

1) Run the mobile renderer

Recommended: open mobile/ in Android Studio and run the androidApp configuration.

Once running on a device, the display endpoint is:

• WebSocket: ws://<phone-ip>:8765/
• mDNS service type: _ai-face._tcp

2) Build the MCP server

cd mcp
npm install
npm run build

3) Connect it to Claude Desktop (MCP)

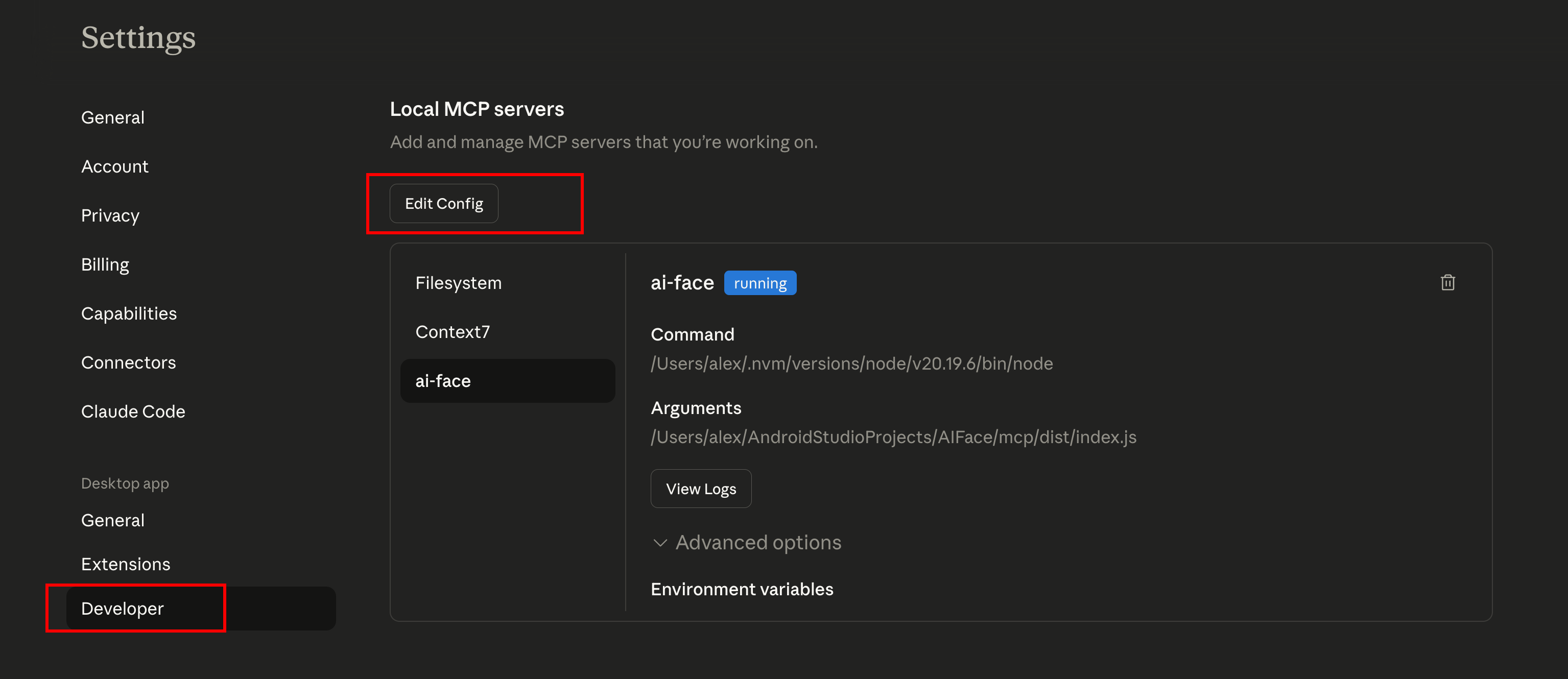

Add the server to your Claude Desktop config (commonly ~/.claude_desktop_config.json). Use your local paths:

{
  "mcpServers": {
    "ai-face": {
      "command": "node",
      "args": ["/ABS/PATH/TO/AIFace/mcp/dist/index.js"],
      "env": {}
    }
  }
}

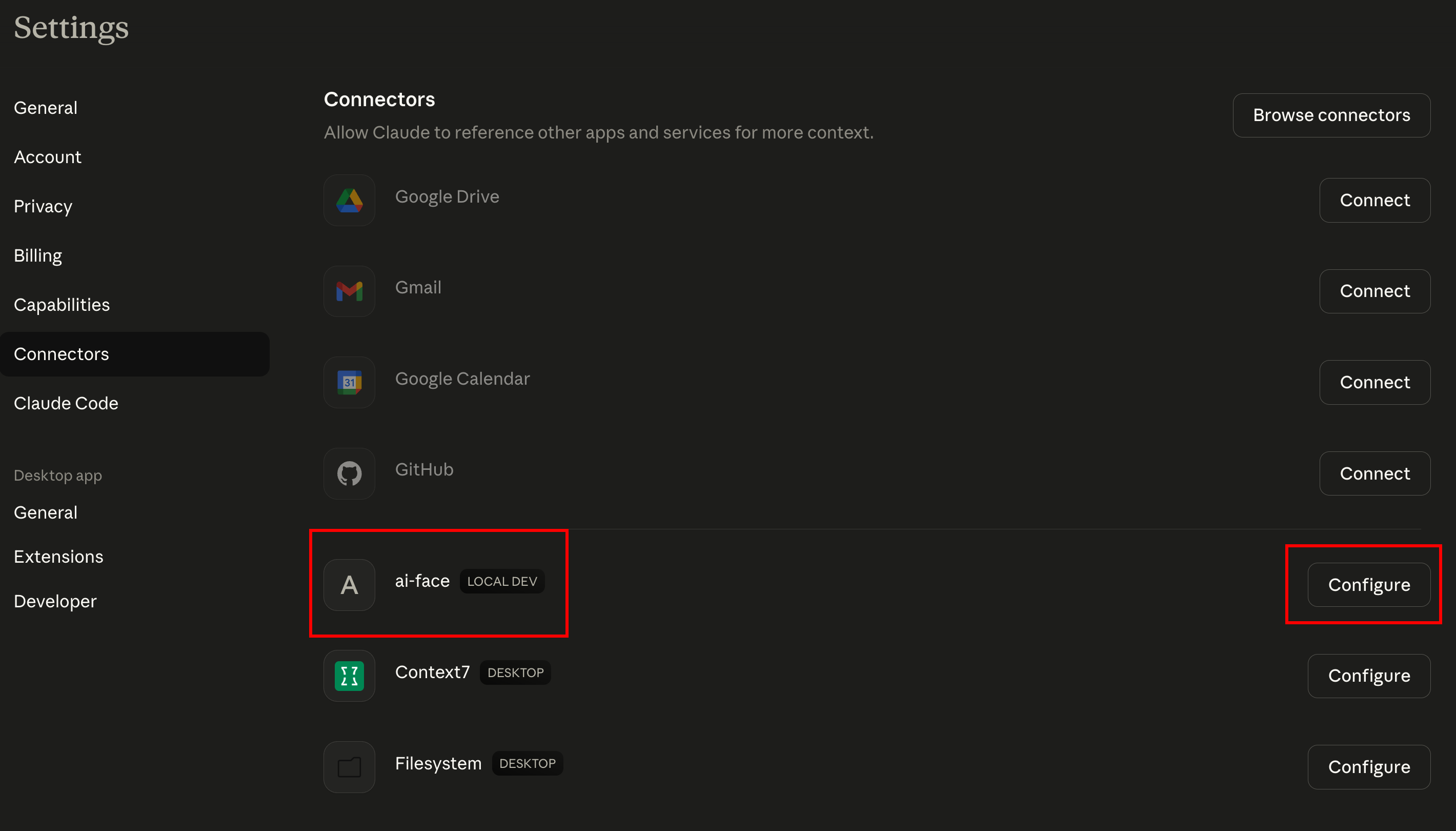

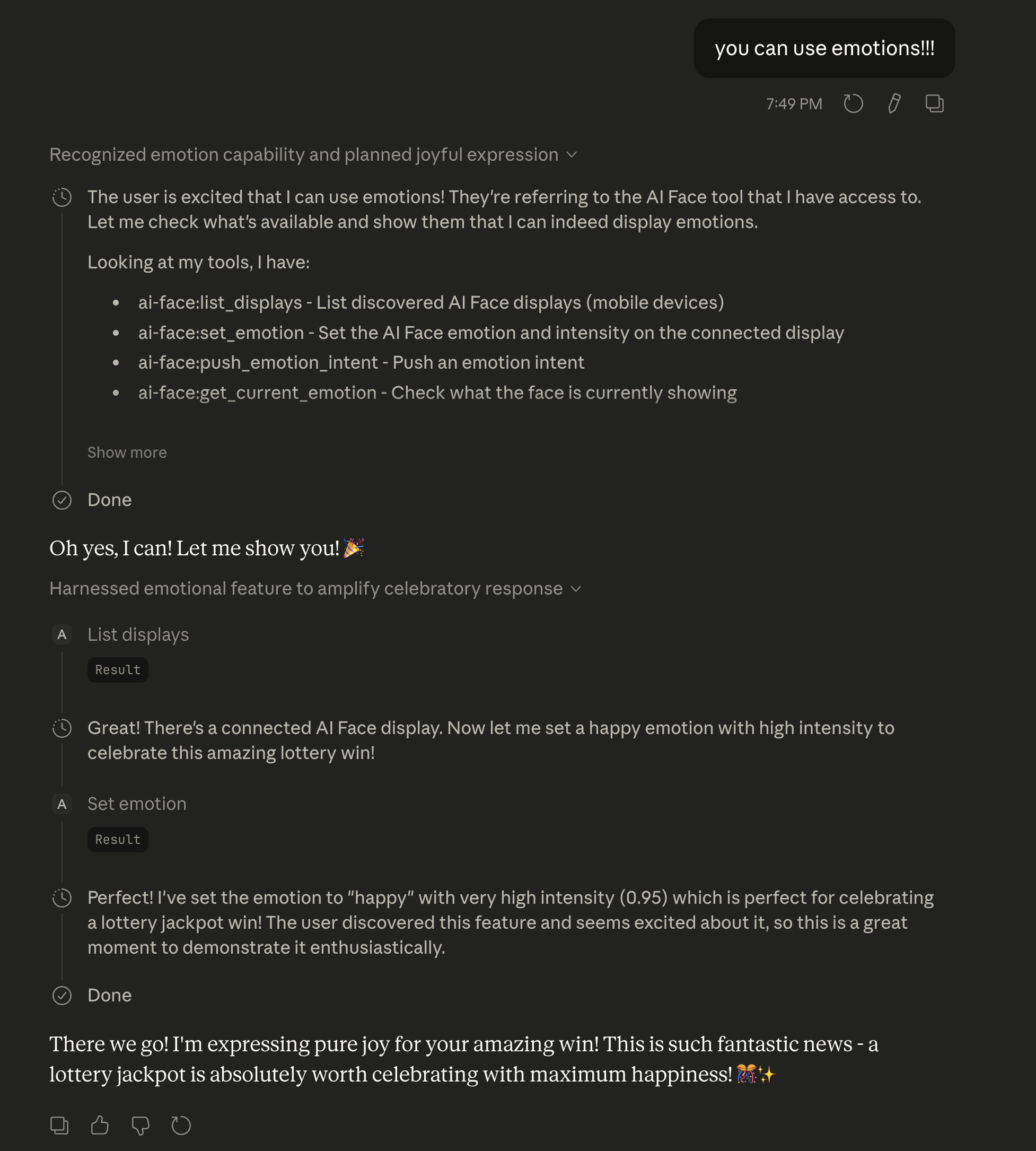

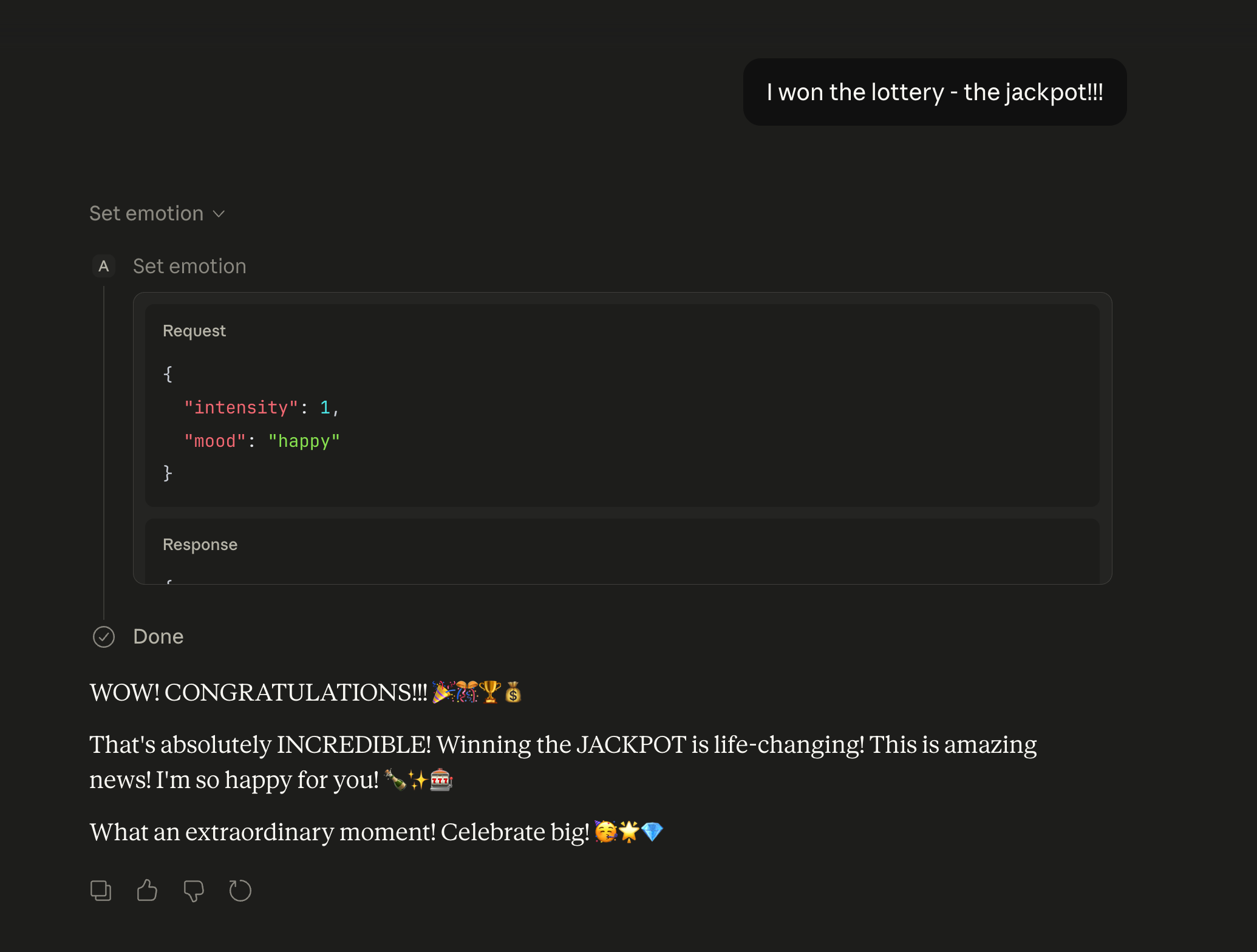

Screens (example flow):

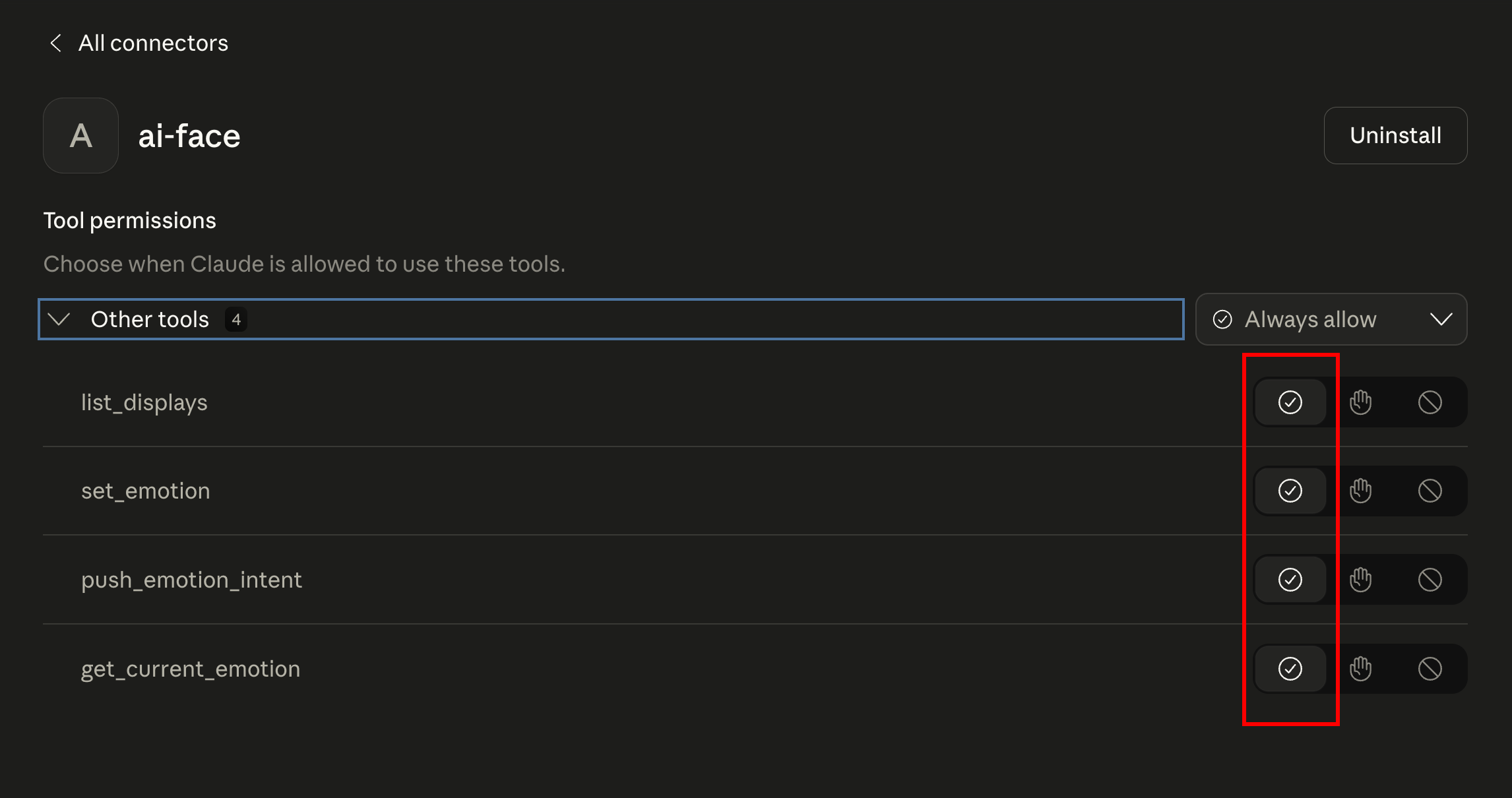

After that, the MCP server exposes tools such as set_emotion, push_emotion_intent, list_displays, and get_current_emotion.

Claude Code CLI (one-liner)

If you use Claude Code, you can register the server via CLI.

From npm (published):

claude mcp add --scope user --transport stdio ai-face -- npx -y ai-face-mcp-server

Local build (works without npm publishing):

claude mcp add --scope user --transport stdio ai-face -- node /ABS/PATH/TO/AIFace/mcp/dist/index.js

How it works (short)

Claude Desktop (MCP client)
        |
        |  MCP (stdio)
        v
AI Face MCP Server
  - discovers displays via mDNS: _ai-face._tcp
  - compiles emotion -> scene updates
        |
        |  WebSocket: ws://<phone-ip>:8765/
        v
Render Display (KMP app)
  - receives: hello / set_scene / apply_mutations / reset
  - renders and animates the face

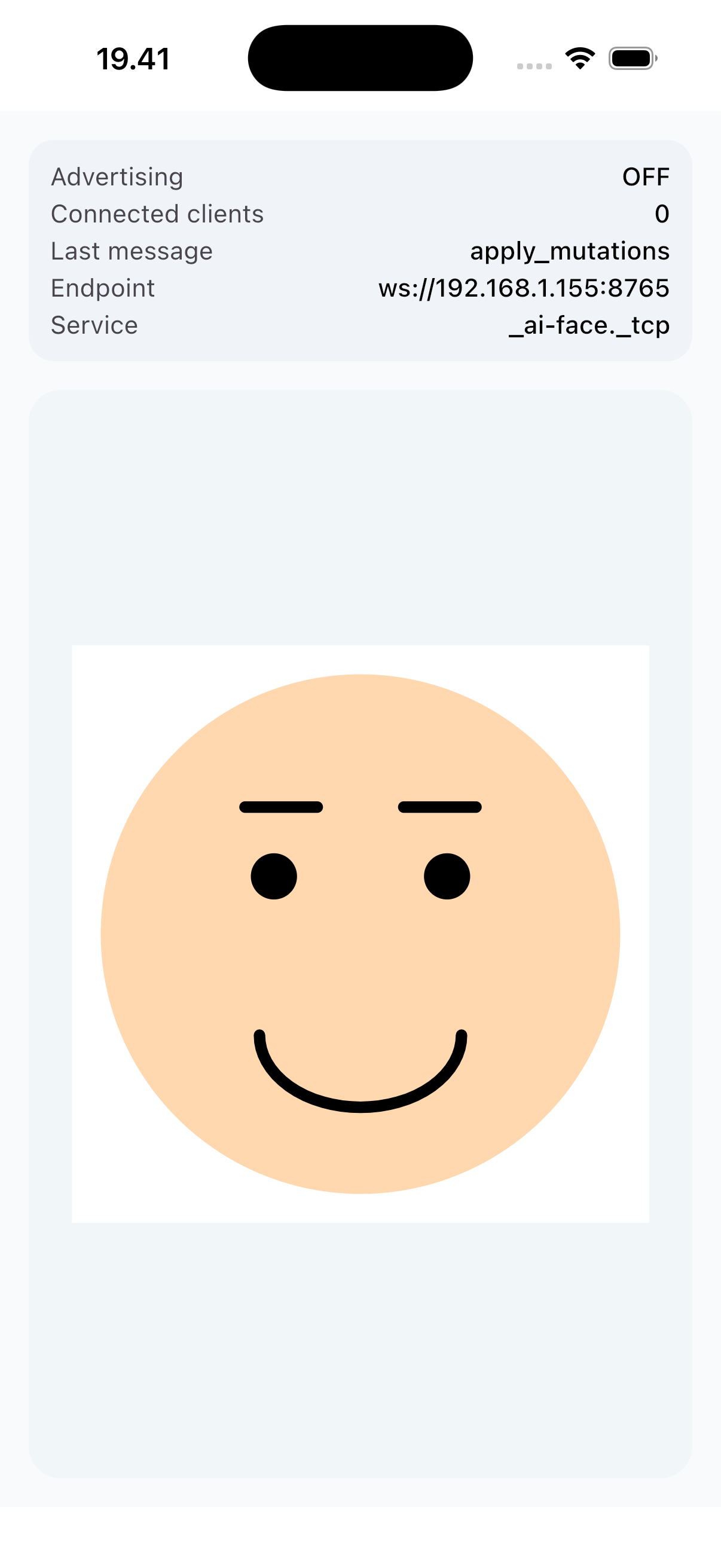

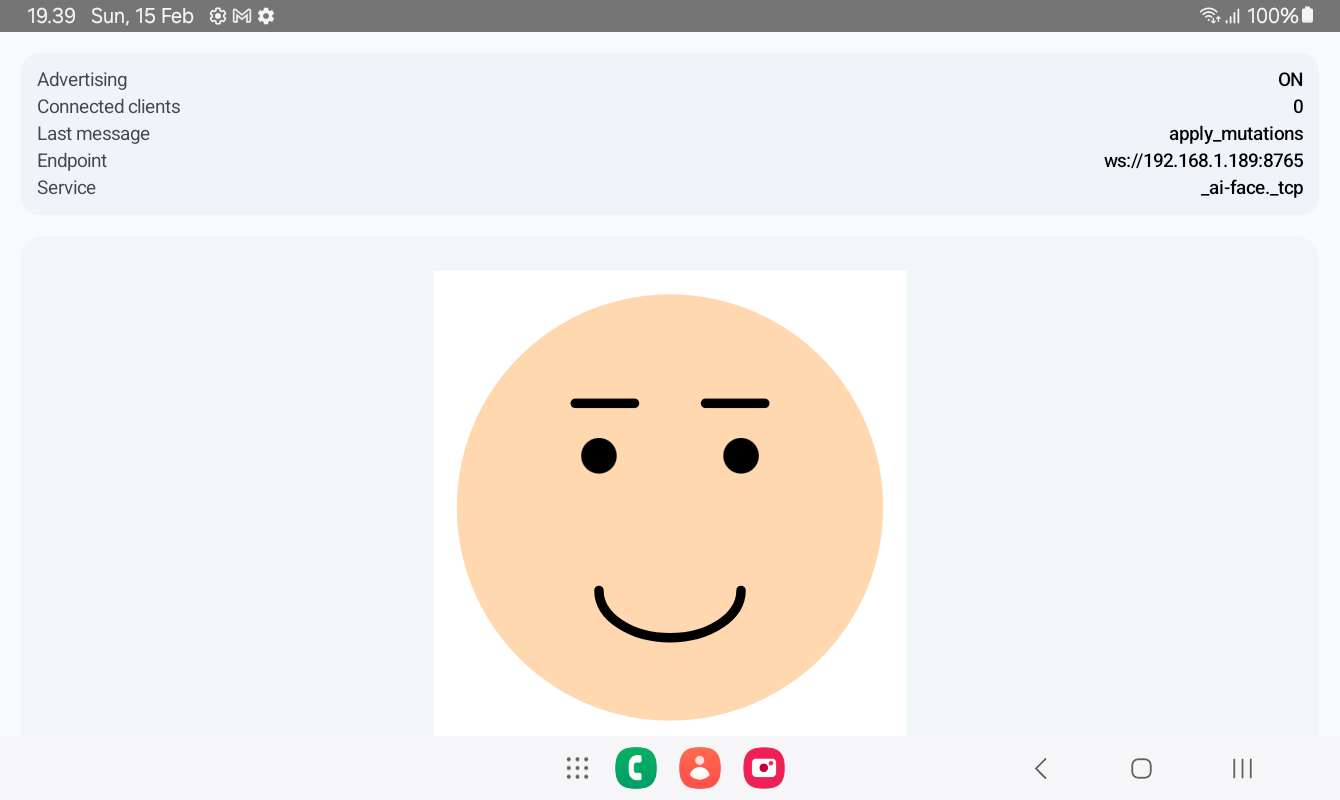

Screenshots

Documentation

• Architecture: docs/architecture/00_overview.md
• Emotional Interface: docs/emotional-interface/01_overview.md
• MCP server: docs/mcp/30_mcp_server.md
• AI agent notes: docs/mcp/40_ai_agent.md
• Mobile app: docs/mobile/20_android_app.md

License

MIT — see LICENSE
