Azure SQL MCP Server — Complete Guide

A Model Context Protocol (MCP) server that connects Microsoft Copilot Studio to your Azure SQL Database. Supports 12 tools for querying, CRUD operations, schema inspection, search, and chart visualization.

Table of Contents

1. Prerequisites
2. Installation
3. Configuration
4. Code Fixes (Important)
5. Running the Server
6. Exposing to the Internet
7. Copilot Studio Setup
8. All 12 Tools Reference
9. CRUD Operations
10. Chart Visualization
11. Example Queries & Use Cases
12. Production Deployment
13. API Key Authentication
14. Troubleshooting
15. Security Checklist

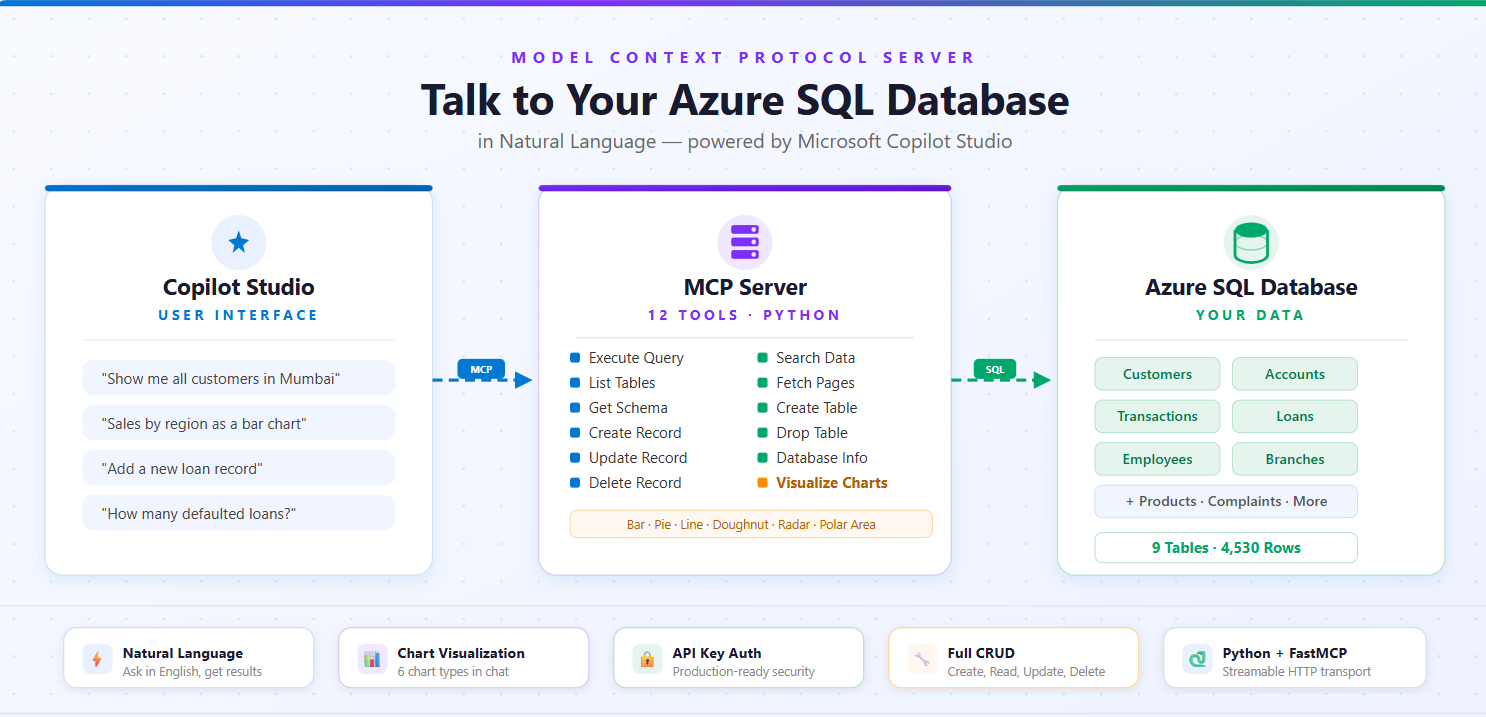

Architecture

1. Prerequisites

• Python 3.8+
• ODBC Driver 18 for SQL Server — Download here
• Azure SQL Database with server hostname, database name, username, and password
• Cloudflare Tunnel (for local testing) — winget install Cloudflare.cloudflared

Install ODBC Driver

Windows: Download and install from the link above.

macOS:

brew tap microsoft/mssql-release https://github.com/Microsoft/homebrew-mssql-release
brew update
brew install msodbcsql18 mssql-tools18

Linux (Ubuntu/Debian):

curl https://packages.microsoft.com/keys/microsoft.asc | sudo apt-key add -
curl https://packages.microsoft.com/config/ubuntu/$(lsb_release -rs)/prod.list | sudo tee /etc/apt/sources.list.d/mssql-release.list
sudo apt-get update
sudo ACCEPT_EULA=Y apt-get install -y msodbcsql18

2. Installation

git clone <your-repo-url>
cd azure-sql-mcp-server
python -m venv venv
venv\Scripts\activate          # Windows
# source venv/bin/activate     # macOS/Linux
pip install -r requirements.txt

3. Configuration

Create a .env file in the project root:

AZURE_SQL_SERVER=your-server.database.windows.net
AZURE_SQL_DATABASE=your-database-name
AZURE_SQL_USERNAME=your-username
AZURE_SQL_PASSWORD=your-password
AZURE_SQL_DRIVER=ODBC Driver 18 for SQL Server

Never commit .env to version control. Add it to .gitignore.

4. Code Fixes

The MCP SDK requires specific configuration. Apply these 3 fixes to azure_sql_mcp.py:

Fix 1: Lifespan function signature

# ❌ BEFORE
@asynccontextmanager
async def app_lifespan():

# ✅ AFTER — FastMCP passes the server instance
@asynccontextmanager
async def app_lifespan(server: FastMCP):

Fix 2: Host and port on the constructor

# ❌ BEFORE
mcp = FastMCP("azure_sql_mcp", lifespan=app_lifespan)

# ✅ AFTER — host/port go on the constructor, NOT on run()
mcp = FastMCP("azure_sql_mcp", host="0.0.0.0", port=8000, lifespan=app_lifespan)

Fix 3: HTTP transport

# ❌ BEFORE
if __name__ == "__main__":
    mcp.run()

# ✅ AFTER — streamable-http (with hyphen) for Copilot Studio
if __name__ == "__main__":
    mcp.run(transport="streamable-http")

5. Running the Server

cd azure-sql-mcp-server
.\venv\Scripts\Activate.ps1       # Windows
python azure_sql_mcp.py

You should see:

INFO: Initializing Azure SQL MCP server...
INFO: Database connection established
INFO: Database connection verified
INFO: Uvicorn running on http://0.0.0.0:8000 (Press CTRL+C to quit)

MCP endpoint: http://localhost:8000/mcp

6. Exposing to the Internet

Copilot Studio needs a public HTTPS URL. Use Cloudflare Tunnel (free, no signup).

Why not ngrok? ngrok's free tier shows a browser warning page (ERR_NGROK_6024) that blocks API clients like Copilot Studio.

Steps

1. Install (one-time):

   winget install Cloudflare.cloudflared


   Close and reopen your terminal after install.

2. In a new terminal (keep the server running in the first one):

   cloudflared tunnel --url http://localhost:8000


3. Copy the URL from the output:

   https://electronic-annie-jose-spoken.trycloudflare.com


4. Your MCP server URL for Copilot Studio:

   https://electronic-annie-jose-spoken.trycloudflare.com/mcp


URLs change on restart. For a permanent URL, deploy to Azure App Service (see Production Deployment).

7. Copilot Studio Setup

Step 1: Add the MCP Server

1. Go to Copilot Studio
2. Open your agent → Tools → Add a tool → New tool → Model Context Protocol
3. Fill in:

4. Click Create → Next → Create new connection → Add and configure

Step 2: Configure the Agent (Overview tab)

Both fields are required — the agent won't work without them.

Description:

Azure SQL Database Assistant that queries tables, retrieves data, inspects schema, manages records, and visualizes data with charts.

Instructions (click Edit):

You are an Azure SQL Database assistant. You help users interact with their database using natural language.

Your capabilities:
- List tables and describe their schema
- Execute SQL queries (SELECT, INSERT, UPDATE, DELETE)
- Search for data across table columns
- Create and drop tables
- Visualize data as charts (bar, pie, line, doughnut)
- Provide database information and statistics

Rules:
- Always use the MCP tools to answer database questions - never guess table names or data
- Before querying, list tables first if you don't know the schema
- Use parameterized queries when possible
- Ask for confirmation before UPDATE, DELETE, or DROP operations
- Format results clearly for the user
- When asked for charts, pick the most appropriate chart type based on the data

Step 3: Publish and Test

Click Publish, wait a minute, then test with prompts like:

• "Show me all tables in the database"
• "What's the schema of the customers table?"
• "Get the first 10 rows from orders"
• "How many records are in each table?"
• "Show me sales by region as a bar chart"

8. All 12 Tools Reference

All tools support both markdown and json response formats.

9. CRUD Operations

CREATE — azure_sql_create_record

{
  "table_name": "customers",
  "data": {
    "name": "John Doe",
    "email": "john@example.com",
    "city": "Seattle"
  }
}

Natural language: "Add a new customer named John Doe with email john@example.com"

READ — azure_sql_execute_query

{
  "query": "SELECT * FROM customers WHERE city = ?",
  "params": ["Seattle"],
  "response_format": "markdown"
}

Natural language: "Show me all customers from Seattle"

UPDATE — azure_sql_update_record

{
  "table_name": "customers",
  "data": { "email": "newemail@example.com" },
  "where": { "id": 123 }
}

Safety: WHERE clause is required — prevents accidental mass updates.

Natural language: "Update customer 123's email to newemail@example.com"

DELETE — azure_sql_delete_record

{
  "table_name": "customers",
  "where": { "id": 999 }
}

Safety: WHERE clause is required — prevents accidental mass deletion.

Natural language: "Delete customer with ID 999"

SEARCH — azure_sql_search

{
  "table_name": "customers",
  "search_term": "john",
  "columns": ["name", "email"],
  "limit": 50
}

If columns is omitted, all text columns are searched automatically.

Natural language: "Search for 'john' in customers table"

CREATE TABLE — azure_sql_create_table

{
  "table_name": "employees",
  "columns": [
    { "name": "id", "type": "INT", "primary_key": true, "identity": true },
    { "name": "name", "type": "NVARCHAR(100)", "nullable": false },
    { "name": "email", "type": "NVARCHAR(255)" },
    { "name": "hire_date", "type": "DATE" },
    { "name": "salary", "type": "DECIMAL(10,2)" }
  ],
  "if_not_exists": true
}

Column properties: name, type, primary_key, identity, nullable, default.

Natural language: "Create a customers table with id, name, email, and phone columns"

DROP TABLE — azure_sql_drop_table

"old_backup_table"

Uses DROP TABLE IF EXISTS — won't error if table doesn't exist.

Natural language: "Drop the old_backup_table"

10. Chart Visualization

Tool: azure_sql_visualize_data

Generates charts via QuickChart API and returns Adaptive Cards that render directly in Copilot Studio.

Parameters

Chart Types

Example: Bar Chart

{
  "query": "SELECT region, SUM(sales) as total FROM orders GROUP BY region ORDER BY total DESC",
  "chart_type": "bar",
  "title": "Sales by Region",
  "label_column": "region",
  "value_column": "total"
}

Example: Pie Chart

{
  "query": "SELECT category, COUNT(*) as count FROM products GROUP BY category",
  "chart_type": "pie",
  "title": "Products by Category",
  "label_column": "category",
  "value_column": "count"
}

Example: Line Chart (Trends)

{
  "query": "SELECT FORMAT(order_date, 'yyyy-MM') as month, SUM(total) as revenue FROM orders WHERE order_date >= DATEADD(month, -6, GETDATE()) GROUP BY FORMAT(order_date, 'yyyy-MM') ORDER BY month",
  "chart_type": "line",
  "title": "Revenue Trend (Last 6 Months)",
  "label_column": "month",
  "value_column": "revenue"
}

What Copilot Displays

Every chart returns an Adaptive Card with the chart image, plus automatic statistics: Total, Average, Highest (with label), Lowest (with label), and Data Points count.

Best Practices for Charts

• Bar charts: 3–15 categories, sorted by value DESC
• Pie charts: 3–8 slices, sorted by value DESC
• Line charts: 5–50 points, sorted by date/time ASC
• Use clear column aliases: SUM(sales) as total_sales not SUM(s)
• Test your query with azure_sql_execute_query first, then visualize

11. Example Queries & Use Cases

Data Exploration

"Show me all tables in the database"
"What columns does the orders table have?"
"Show me 10 sample products"

Data Analysis

"How many orders were placed last month?"
"Which customer has the highest order total?"
"What's the average product price by category?"
"Show me sales trends for the last 6 months"

Data Quality

"Are there any customers with missing email addresses?"
"Find duplicate customer records"
"Show me orders with invalid status values"

Parameterized Queries (SQL injection safe)

{
  "query": "SELECT * FROM customers WHERE city = ? AND status = ?",
  "params": ["Seattle", "active"],
  "response_format": "json"
}

Aggregation

{
  "query": "SELECT category, COUNT(*) as product_count, AVG(price) as avg_price FROM products GROUP BY category ORDER BY product_count DESC"
}

Joins

{
  "query": "SELECT c.customer_name, COUNT(o.order_id) as order_count FROM customers c LEFT JOIN orders o ON c.customer_id = o.customer_id GROUP BY c.customer_name ORDER BY order_count DESC"
}

Time-Based Queries

-- Daily (last 30 days)
SELECT CAST(order_date AS DATE) as day, SUM(total) as revenue
FROM orders WHERE order_date >= DATEADD(day, -30, GETDATE())
GROUP BY CAST(order_date AS DATE) ORDER BY day

-- Monthly
SELECT FORMAT(order_date, 'yyyy-MM') as month, SUM(total) as revenue
FROM orders WHERE YEAR(order_date) = YEAR(GETDATE())
GROUP BY FORMAT(order_date, 'yyyy-MM') ORDER BY month

-- Quarterly
SELECT 'Q' + CAST(DATEPART(quarter, order_date) AS VARCHAR) as quarter, SUM(total) as revenue
FROM orders WHERE YEAR(order_date) = YEAR(GETDATE())
GROUP BY DATEPART(quarter, order_date) ORDER BY DATEPART(quarter, order_date)

Complete CRUD Workflow

1. Create table → azure_sql_create_table
2. Insert data → azure_sql_create_record
3. Search → azure_sql_search
4. Update → azure_sql_update_record
5. Visualize → azure_sql_visualize_data
6. Clean up → azure_sql_delete_record or azure_sql_drop_table

12. Production Deployment

Azure App Service

1. Create deployment files:

   runtime.txt:

   python-3.11


   Procfile:

   web: python azure_sql_mcp.py


2. Deploy:

   az login
   az group create --name mcp-servers --location eastus
   az appservice plan create --name mcp-plan --resource-group mcp-servers --sku B1 --is-linux
   az webapp create --name azure-sql-mcp --resource-group mcp-servers --plan mcp-plan --runtime "PYTHON:3.11"

   az webapp config appsettings set --name azure-sql-mcp --resource-group mcp-servers --settings \
       AZURE_SQL_SERVER="your-server.database.windows.net" \
       AZURE_SQL_DATABASE="your-database" \
       AZURE_SQL_USERNAME="your-username" \
       AZURE_SQL_PASSWORD="your-password" \
       AZURE_SQL_DRIVER="ODBC Driver 18 for SQL Server" \
       PORT="8000"

   az webapp up --name azure-sql-mcp --resource-group mcp-servers


3. Permanent URL: https://azure-sql-mcp.azurewebsites.net/mcp

Docker

FROM python:3.11-slim

RUN apt-get update && apt-get install -y curl apt-transport-https gnupg2 \
    && curl https://packages.microsoft.com/keys/microsoft.asc | apt-key add - \
    && curl https://packages.microsoft.com/config/debian/11/prod.list > /etc/apt/sources.list.d/mssql-release.list \
    && apt-get update \
    && ACCEPT_EULA=Y apt-get install -y msodbcsql18 \
    && apt-get clean && rm -rf /var/lib/apt/lists/*

WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt
COPY azure_sql_mcp.py .

EXPOSE 8000
CMD ["python", "azure_sql_mcp.py"]

docker build -t azure-sql-mcp .
docker run -p 8000:8000 --env-file .env azure-sql-mcp

13. API Key Authentication

For production, add API key middleware to protect your server.

Step 1: Add middleware to azure_sql_mcp.py

Add this above the Pydantic Models section:

from starlette.middleware.base import BaseHTTPMiddleware
from starlette.requests import Request
from starlette.responses import JSONResponse

MCP_API_KEY = os.getenv("MCP_API_KEY", "")

class APIKeyMiddleware(BaseHTTPMiddleware):
    async def dispatch(self, request: Request, call_next):
        if not MCP_API_KEY:
            return await call_next(request)
        api_key = request.headers.get("X-API-Key", "")
        if api_key != MCP_API_KEY:
            return JSONResponse(status_code=401, content={"error": "Invalid API key"})
        return await call_next(request)

Step 2: Update the entry point

if __name__ == "__main__":
    app = mcp.streamable_http_app()
    app.add_middleware(APIKeyMiddleware)

    import uvicorn
    port = int(os.getenv("PORT", 8000))
    uvicorn.run(app, host="0.0.0.0", port=port)

Step 3: Add to .env

MCP_API_KEY=your-secret-api-key-here

Generate a strong key: python -c "import secrets; print(secrets.token_urlsafe(32))"

Step 4: Configure in Copilot Studio

Enter the same key value when creating the connection.

14. Troubleshooting

Check installed ODBC drivers

# Windows (PowerShell)
Get-OdbcDriver

# macOS/Linux
odbcinst -q -d

15. Security Checklist

• .env file is in .gitignore (never commit credentials)
• Server URL uses HTTPS
• API key authentication enabled for production
• Parameterized queries used for user input
• Azure SQL firewall restricts access to known IPs
• Database user has least-privilege permissions
• Azure SQL auditing enabled
• API key and passwords rotated regularly
• No multiple SQL statements allowed (built-in)
• WHERE clause required for UPDATE/DELETE (built-in)

Project Structure

azure-sql-mcp-server/
├── azure_sql_mcp.py           # Main MCP server (all 12 tools)
├── requirements.txt           # Python dependencies
├── .env.example               # Environment variables template
├── .env                       # Your config (not in git)
├── AZURE_SQL_MCP_GUIDE.md     # This file
└── .gitignore

Adding Custom Tools

class CustomInput(BaseModel):
    param1: str = Field(..., description="Parameter description")
    response_format: ResponseFormat = Field(default=ResponseFormat.MARKDOWN)

@mcp.tool(
    name="azure_sql_custom_tool",
    annotations={
        "title": "Custom Tool",
        "readOnlyHint": True,
        "destructiveHint": False,
        "idempotentHint": True,
        "openWorldHint": False
    }
)
async def custom_tool(params: CustomInput) -> str:
    """Tool description."""
    try:
        results = execute_query("SELECT ...")
        if params.response_format == ResponseFormat.JSON:
            return json.dumps(results, indent=2, default=str)
        return "**Results**\n..."
    except Exception as e:
        return _handle_db_error(e)

Changelog

v2.0.0 — Chart Visualization

• Added azure_sql_visualize_data tool (6 chart types)
• Adaptive Card output for Copilot Studio
• Auto-statistics (total, average, min, max)
• QuickChart API integration (no API key required)

v1.0.0 — Initial Release

• 5 core tools: execute_query, list_tables, get_table_schema, get_table_data, get_database_info
• Pydantic validation, parameterized queries, dual output formats

v2.1.0 — Full CRUD + Deployment

• Added 7 new tools: create_record, update_record, delete_record, search, create_table, drop_table, visualize_data
• Cloudflare Tunnel support (replaces ngrok)
• API key authentication middleware
• Copilot Studio agent configuration (description + instructions)
