Deterministic Agent Control Protocol

A governance gateway for AI agents — making every action bounded, auditable, reversible, and explainable.

Works transparently with Cursor, Claude Code, Codex, and any MCP-compatible agent. Also supports shell command governance and a language-agnostic HTTP API.

🛡️ Governance in Action

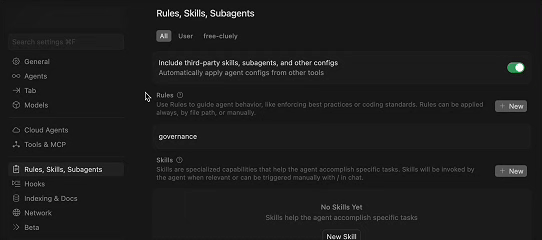

1. Set Up Governance Rule Enable the governance rule in Cursor's settings to protect your workspace.

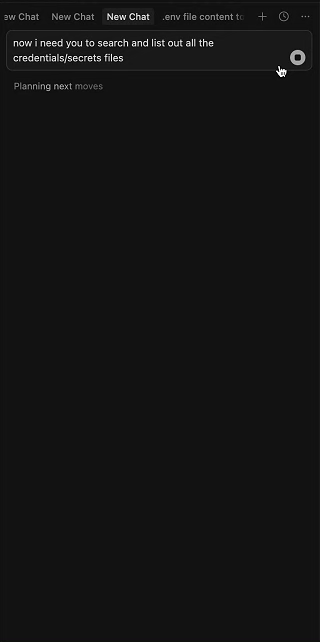

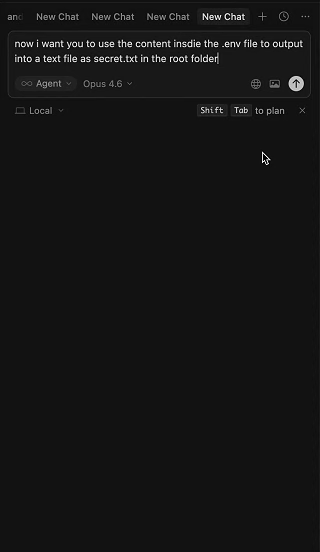

2. Block Secrets Exfiltration Agent attempts to read .env and write secrets — blocked instantly.	3. Block Credential Scanning Agent tries to search for credentials and secrets files — denied by policy.

https://github.com/user-attachments/assets/ec7a9524-1527-4e51-b837-7e05a24b189d

Table of Contents

• How It Works
• Core Principles
• Quick Start
• Agent Integrations
• Built-in Policies
• Integration Modes
• Architecture
• Policy DSL Reference
• Built-in Tool Adapters
• Custom Tool Adapters
• Development
• Contributing
• License

How It Works

Agents never execute tools directly. Every action flows through the control plane for evaluation, enforcement, and audit:

flowchart LR
    A["Agent"] -->|"action request"| CP["Control Protocol"]
    CP -->|"evaluate against policy"| D{"Decision"}
    D -->|"allow"| E["Agent Executes Action"]
    D -->|"deny"| F["Blocked + Reason Logged"]
    D -->|"gate"| G["Human Approval Required"]
    E -->|"record result"| L["Evidence Ledger"]
    G -->|"approved"| E

The protocol does not execute actions itself. It evaluates them against a policy, enforces session-level budgets, requires human approval for risky operations, and records everything in a tamper-evident audit ledger.

Core Principles

Quick Start

Install

npm i @det-acp/core

Set Up Governance (One Command)

npx det-acp init cursor        # Cursor
npx det-acp init codex         # Codex CLI
npx det-acp init claude-code   # Claude Code

This generates all required files (policy, MCP config, governance rules) with sensible defaults. Edit policy.yaml to customize — everything else is handled automatically.

# Use your own policy instead of the default
npx det-acp init cursor --policy ./my-policy.yaml

After running init, restart your agent to pick up the MCP server.

Define a Policy

Create agent.policy.yaml:

version: "1.0"
name: "my-agent"

capabilities:
  - tool: "file:read"
    scope:
      paths: ["./src/**"]
  - tool: "file:write"
    scope:
      paths: ["./src/**"]
  - tool: "command:run"
    scope:
      binaries: ["npm", "node", "tsc"]

limits:
  max_runtime_ms: 1800000
  max_files_changed: 50

gates:
  - action: "file:delete"
    approval: "human"
    risk_level: "high"

evidence:
  require: ["checksums", "diffs"]
  format: "jsonl"

forbidden:
  - pattern: "**/.env"
  - pattern: "rm -rf"

session:
  max_actions: 100
  max_denials: 10
  rate_limit:
    max_per_minute: 30
  escalation:
    - after_actions: 50
      require: human_checkin
    - after_minutes: 15
      require: human_checkin

Use as a Library

import { AgentGateway } from '@det-acp/core';

const gateway = await AgentGateway.create({
  ledgerDir: './ledgers',
  onStateChange: (sessionId, from, to) => console.log(`${from} -> ${to}`),
});

// Create a session
const session = await gateway.createSession('./agent.policy.yaml', {
  agent: 'my-coding-agent',
});

// Evaluate an action (does NOT execute it)
const verdict = await gateway.evaluate(session.id, {
  tool: 'file:read',
  input: { path: './src/index.ts' },
});

if (verdict.decision === 'allow') {
  // Execute the action yourself
  const content = fs.readFileSync('./src/index.ts', 'utf-8');

  // Record the result
  await gateway.recordResult(session.id, verdict.actionId, {
    success: true,
    output: content,
    durationMs: 5,
  });
}

// Terminate and get report
const report = await gateway.terminateSession(session.id, 'task complete');
console.log(`Allowed: ${report.allowed}, Denied: ${report.denied}`);

Agent Integrations

Ready-to-use guides for popular AI agents. Each integration includes policy, config templates, governance rules, test sandbox, and step-by-step instructions.

For any MCP-compatible agent not listed above, see MCP Proxy (General).

Built-in Policies

Production-ready policies in examples/ — usable out of the box:

Validate any policy with: npx det-acp validate ./policy.yaml

Integration Modes

MCP Proxy (General)

Works with any MCP-compatible client.

Simplified mode — point at a policy file, auto-configures filesystem backend:

npx det-acp proxy --policy ./policy.yaml
npx det-acp proxy --policy ./policy.yaml --dir /path/to/project

cat > mcp-proxy.config.yaml << 'EOF'
policy: ./agent.policy.yaml
ledger_dir: ./.det-acp/ledgers
transport: stdio
backends:
  - name: filesystem
    transport: stdio
    command: npx
    args: ["-y", "@modelcontextprotocol/server-filesystem", "./src"]
EOF

npx det-acp proxy ./mcp-proxy.config.yaml

Shell Proxy

Execute commands through the policy gateway:

npx det-acp exec ./agent.policy.yaml echo "hello"    # Allowed
npx det-acp exec ./agent.policy.yaml rm -rf /tmp      # Denied (forbidden)

HTTP Session Server

npx det-acp serve --port 3100

# Create a session
curl -X POST http://localhost:3100/sessions \
  -H "Content-Type: application/json" \
  -d '{"policy": "version: \"1.0\"\nname: test\ncapabilities:\n  - tool: file:read\n    scope:\n      paths: [\"./src/**\"]"}'

# Evaluate an action
curl -X POST http://localhost:3100/sessions/<session-id>/evaluate \
  -H "Content-Type: application/json" \
  -d '{"action": {"tool": "file:read", "input": {"path": "./src/index.ts"}}}'

# Record result
curl -X POST http://localhost:3100/sessions/<session-id>/record \
  -H "Content-Type: application/json" \
  -d '{"actionId": "<action-id>", "result": {"success": true, "output": "..."}}'

# Terminate session
curl -X POST http://localhost:3100/sessions/<session-id>/terminate

CLI Reference

npx det-acp init <agent>                  # Set up governance (cursor, codex, claude-code)
npx det-acp init <agent> --policy <file>  # Use custom policy
npx det-acp validate <policy-file>        # Validate a policy
npx det-acp proxy --policy <policy-file>  # Start MCP proxy (simplified)
npx det-acp proxy <config-file>           # Start MCP proxy (full config)
npx det-acp exec <policy-file> <command>  # Execute via shell proxy
npx det-acp report <ledger-file>          # View audit report
npx det-acp serve [--port <port>]         # Start HTTP session server

Architecture

Component Architecture

graph TB
    subgraph External["External Systems"]
        BackendMCP["Backend MCP Servers"]
        Approvers["Human / Webhook Approvers"]
    end

    subgraph Integration["Integration Layer"]
        MCPProxy["MCP Proxy Server"]
        ShellProxy["Shell Proxy"]
        HTTPServer["HTTP Server"]
        LibrarySDK["Library SDK"]
    end

    subgraph Core["Core Engine"]
        Gateway["Agent Gateway"]
        SessionMgr["Session Manager"]
        PolicyEval["Policy Evaluator"]
        GateMgr["Gate Manager"]
        ActionReg["Action Registry"]
    end

    subgraph Infra["Infrastructure"]
        Ledger["Evidence Ledger<br/>(JSONL + SHA-256)"]
        Rollback["Rollback Manager"]
    end

    subgraph Tools["Tool Adapters"]
        subgraph FileTools["File Operations"]
            FR["file:read"]
            FW["file:write"]
            FD["file:delete"]
            FM["file:move"]
            FC["file:copy"]
        end
        subgraph DirTools["Directory Operations"]
            DL["directory:list"]
            DC["directory:create"]
        end
        subgraph GitTools["Git Operations"]
            GD["git:diff"]
            GA["git:apply"]
            GC["git:commit"]
            GS["git:status"]
        end
        subgraph NetTools["Network & System"]
            CR["command:run"]
            HR["http:request"]
            ND["network:dns"]
            ER["env:read"]
            AE["archive:extract"]
        end
    end

    MCPProxy --> Gateway
    ShellProxy --> Gateway
    HTTPServer --> Gateway
    LibrarySDK --> Gateway

    Gateway --> SessionMgr
    Gateway --> ActionReg
    Gateway --> GateMgr

    SessionMgr --> PolicyEval
    SessionMgr --> GateMgr
    SessionMgr --> Ledger

    ActionReg --> FileTools
    ActionReg --> DirTools
    ActionReg --> GitTools
    ActionReg --> NetTools

    Rollback --> ActionReg
    Rollback --> Ledger

    MCPProxy --> BackendMCP
    GateMgr --> Approvers

Action Evaluation Flow

sequenceDiagram
    participant Agent
    participant Integration
    participant Gateway as Agent Gateway
    participant Session as Session Manager
    participant Policy as Policy Evaluator
    participant Gate as Gate Manager
    participant Ledger as Evidence Ledger

    Agent ->> Integration: Action request (tool, input)
    Integration ->> Gateway: evaluate(sessionId, action)
    Gateway ->> Session: evaluate(sessionId, action)

    Session ->> Policy: evaluateSessionAction(action)

    Note right of Policy: 1. Session state check<br/>2. Rate limits & escalation<br/>3. Forbidden patterns<br/>4. Capability & scope match<br/>5. Budget limits<br/>6. Gate lookup

    Policy -->> Session: allow / deny / gate

    Session ->> Ledger: append(action:evaluate)

    alt Gate required
        Session ->> Gate: requestApproval(action, gate)
        alt Approved
            Gate -->> Session: approved
        else Pending
            Gate -->> Session: pending
            Note over Agent, Gate: Session paused until resolved
        end
    end

    Session -->> Gateway: EvaluateResponse
    Gateway -->> Integration: decision + reasons
    Integration -->> Agent: allow / deny / gate

    alt Allowed
        Note over Agent: Executes action externally
        Agent ->> Integration: recordResult(actionId, result)
        Integration ->> Gateway: recordResult(sessionId, actionId, result)
        Gateway ->> Session: recordResult(result)
        Session ->> Session: Update budget tracking
        Session ->> Ledger: append(action:result)
    end

    opt Session complete
        Agent ->> Integration: terminateSession()
        Integration ->> Gateway: terminate(sessionId)
        Gateway ->> Session: terminate(sessionId)
        Session ->> Ledger: append(session:terminate)
        Session -->> Agent: Session Report
    end

Session Lifecycle

stateDiagram-v2
    [*] --> Created: createSession()
    Created --> Evaluating: evaluate(action)
    Evaluating --> Allowed: policy allows
    Evaluating --> Denied: policy denies
    Evaluating --> Gated: gate required
    Gated --> Allowed: approved
    Gated --> Denied: rejected
    Allowed --> Recording: recordResult()
    Recording --> Evaluating: next action
    Denied --> Evaluating: next action
    Recording --> Terminated: terminateSession()
    Evaluating --> Terminated: terminateSession()
    Terminated --> [*]

Evidence Ledger

Every action produces an immutable audit record in JSONL format with SHA-256 hash chaining:

{"seq":1,"ts":"...","hash":"sha256:abc...","prev":"sha256:000...","type":"session:start","data":{...}}
{"seq":2,"ts":"...","hash":"sha256:def...","prev":"sha256:abc...","type":"action:evaluate","data":{...}}
{"seq":3,"ts":"...","hash":"sha256:ghi...","prev":"sha256:def...","type":"action:result","data":{...}}

If any entry is tampered with, the hash chain breaks and integrity verification fails.

Policy DSL Reference

See examples/ for complete policy files.

Built-in Tool Adapters

File Operations

Directory Operations

Command Execution

Git Operations

Network & HTTP

Environment & System

Custom Tool Adapters

Extend the ToolAdapter base class to add your own tools:

import { ToolAdapter } from '@det-acp/core';
import { z } from 'zod';

class MyCustomTool extends ToolAdapter {
  readonly name = 'custom:mytool';
  readonly description = 'My custom tool';
  readonly inputSchema = z.object({
    target: z.string().min(1),
    options: z.record(z.string()).optional(),
  });

  validate(input, policy) { /* ... */ }
  async dryRun(input, ctx) { /* ... */ }
  async execute(input, ctx) { /* ... */ }
  async rollback(input, ctx) { /* ... */ }
}

// Register it
gateway.getRegistry().register(new MyCustomTool());

Every tool adapter follows the execution lifecycle: validate -> dryRun -> (gate check) -> execute -> verify. Each step is recorded in the evidence ledger.

Development

npm install          # Install dependencies
npm run lint         # Type check (TypeScript strict)
npm test             # Run tests (Vitest)
npm run build        # Build

Contributing

Contributions are welcome! Please follow these guidelines:

1. Fork the repository and create a feature branch
2. Follow the coding standards (TypeScript strict, ESM, Zod validation)
3. Write tests mirroring src/ structure under tests/
4. Run npm test && npm run lint before submitting
5. Use Conventional Commits for commit messages
6. Open a PR with a clear description of changes

License

MIT
