Network MCP Server

A Model Context Protocol (MCP) server providing network diagnostic tools for AI agents. Designed to offload heavy network analysis to the server and return structured, actionable data optimized for LLM consumption.

Features

• Connectivity Testing: ping, traceroute, DNS lookups, port checks, MTR
• Batch Operations: Test multiple hosts/ports concurrently
• Local Network Info: Get interfaces, routes, DNS config, ARP table, connections (cross-platform)
• Pcap Analysis: Analyze packet captures with scapy (no tshark required)
• Custom Filters: Execute scapy filter expressions for advanced queries (AST-validated)
• Security Controls: Configurable allowlist/blocklist for target validation (enforced on connectivity tools)
• PCAP Path Guardrails: Restrict which directories the server is allowed to read captures from
• Smart Summaries: Returns human-readable summaries plus structured data

Installation

pip install network-mcp

Or install from source:

git clone https://github.com/labeveryday/network-mcp.git
cd network-mcp
pip install -e .

Quick Start

Run the MCP server:

network-mcp

Or with Python:

python -m network_mcp.server

Recommended first run (helps agents decide what’s safe/available on this host):

• Check capabilities: call capabilities to see installed binaries (like mtr), active security policy, and PCAP path guardrails.
• Decide on policy: if you need to loosen/tighten target validation or PCAP access, set env vars before launching.
• Run unit tests by default: pytest skips integration tests unless you opt in (see Development).

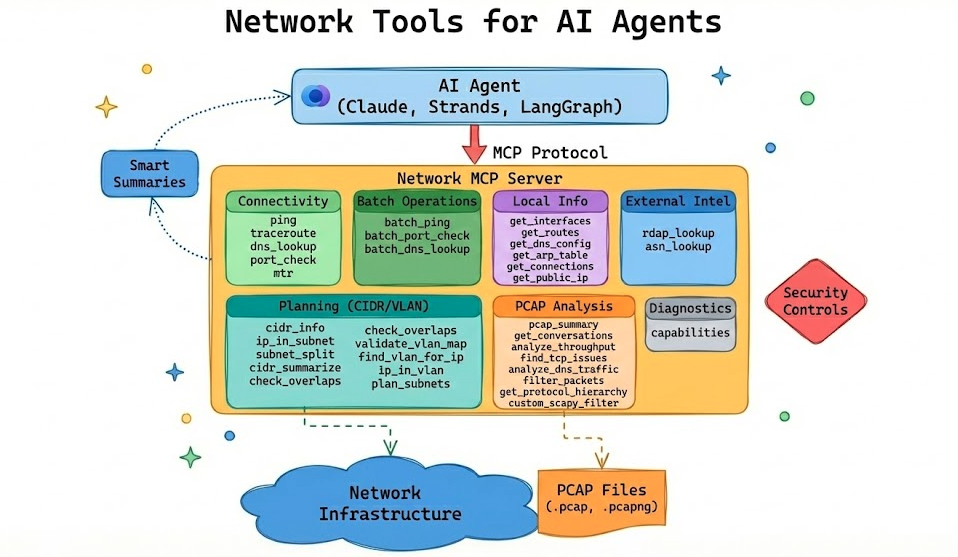

Available Tools

Diagnostics

Planning (Pure CIDR/VLAN math)

Designed for Tier 1 / Tier 2 NOC workflows. These tools are pure (no network calls, deterministic outputs) and safe to use for planning and validation.

Input examples

• VLAN map (both formats accepted):

{
  "10": "192.168.10.0/24",
  "20": { "cidr": "192.168.20.0/24", "name": "Voice" }
}

• plan_subnets requirements (aliases supported: hosts and prefix):

[
  { "vlan_id": 10, "name": "Users", "hosts": 120 },
  { "vlan_id": 20, "name": "Voice", "hosts": 60 },
  { "vlan_id": 30, "name": "Printers", "prefix": 26 }
]

External Intel

Connectivity Tools

Batch Operations

Local Network Info Tools

Cross-platform tools that work on Linux, macOS, and Windows.

Pcap Analysis Tools

IDE Integration

Claude Desktop

Add to ~/Library/Application Support/Claude/claude_desktop_config.json (macOS) or %APPDATA%\Claude\claude_desktop_config.json (Windows):

{
  "mcpServers": {
    "network-tools": {
      "command": ["network-mcp"]
    }
  }
}

Cursor

Add to your MCP settings:

{
  "mcpServers": {
    "network-tools": {
      "command": ["network-mcp"]
    }
  }
}

Using with uv

If you installed with uv:

{
  "mcpServers": {
    "network-tools": {
      "command": "uv",
      "args": ["run", "--directory", "/path/to/network-mcp", "network-mcp"]
    }
  }
}

Example Responses

Ping

{
  "success": true,
  "target": "google.com",
  "resolved_ip": "142.250.80.46",
  "packets_sent": 4,
  "packets_received": 4,
  "packet_loss_percent": 0.0,
  "min_latency_ms": 11.2,
  "avg_latency_ms": 12.8,
  "max_latency_ms": 15.1,
  "summary": "google.com is reachable. 4/4 packets received, avg latency 12.8ms"
}

Batch Ping

{
  "success": true,
  "total_targets": 3,
  "successful": 3,
  "failed": 0,
  "results": [
    {"target": "8.8.8.8", "success": true, "avg_latency_ms": 12.5},
    {"target": "1.1.1.1", "success": true, "avg_latency_ms": 8.2},
    {"target": "google.com", "success": true, "avg_latency_ms": 15.1}
  ],
  "summary": "Batch ping: 3/3 targets reachable"
}

TCP Issues Detection

{
  "success": true,
  "file_path": "/tmp/capture.pcap",
  "total_tcp_packets": 15234,
  "issues": [
    {
      "issue_type": "retransmission",
      "count": 47,
      "severity": "medium",
      "recommendation": "Retransmissions indicate packet loss. Check for network congestion."
    }
  ],
  "has_issues": true,
  "summary": "TCP issues detected in 15234 packets: 47 retransmissions"
}

Throughput (from PCAP)

{
  "success": true,
  "file_path": "/tmp/capture.pcap",
  "total_packets_scanned": 100000,
  "conversations_analyzed": 87,
  "top_n": 3,
  "sort_by": "mbps_total",
  "conversations": [
    {
      "src_ip": "10.0.0.10",
      "src_port": 51544,
      "dst_ip": "93.184.216.34",
      "dst_port": 443,
      "protocol": "TCP",
      "packets_total": 1240,
      "bytes_total": 18423333,
      "duration_seconds": 9.84,
      "start_time": 1734567890.01,
      "end_time": 1734567899.85,
      "packets_forward": 820,
      "bytes_forward": 17600000,
      "packets_reverse": 420,
      "bytes_reverse": 823333,
      "mbps_forward": 14.308,
      "mbps_reverse": 0.669,
      "mbps_total": 14.977,
      "direction": "10.0.0.10:51544 -> 93.184.216.34:443"
    }
  ],
  "summary": "Throughput analysis: 87 conversations from 100000 packets. Top flow 10.0.0.10:51544 -> 93.184.216.34:443 at ~14.977 Mbps over 9.84s"
}

Get Interfaces

{
  "success": true,
  "interfaces": [
    {
      "name": "en0",
      "status": "up",
      "mac_address": "00:11:22:33:44:55",
      "ipv4_addresses": ["192.168.1.100"],
      "ipv6_addresses": ["fe80::1"],
      "netmask": "255.255.255.0",
      "mtu": 1500
    }
  ],
  "default_interface": "en0",
  "summary": "Found 5 interfaces (3 up). Primary: en0"
}

Get Public IP

{
  "success": true,
  "public_ip": "203.0.113.42",
  "service_used": "ipify.org",
  "summary": "Public IP: 203.0.113.42 (via ipify.org)"
}

RDAP Lookup (WHOIS-style)

{
  "success": true,
  "query": "1.1.1.1",
  "query_type": "ip",
  "rdap_url": "https://rdap.org/ip/1.1.1.1",
  "handle": "NET-1-1-1-0-1",
  "country": "AU",
  "start_address": "1.1.1.0",
  "end_address": "1.1.1.255",
  "summary": "RDAP 1.1.1.1: 1.1.1.0–1.1.1.255 (AU), handle NET-1-1-1-0-1"
}

ASN Lookup

{
  "success": true,
  "ip": "1.1.1.1",
  "asn": "13335",
  "prefix": "1.1.1.0/24",
  "country": "AU",
  "registry": "apnic",
  "allocated": "2011-08-11",
  "as_name": "CLOUDFLARENET",
  "summary": "1.1.1.1 originates from AS13335 (CLOUDFLARENET), prefix 1.1.1.0/24"
}

Configuration

Create config.yaml in your working directory or ~/.network-mcp/config.yaml:

security:
  # Only allow these targets (glob patterns, CIDR ranges)
  allowed_targets:
    - "*.company.com"
    - "10.0.0.0/8"
    - "192.168.0.0/16"

  # Block these targets
  blocked_targets:
    - "*.gov"
    - "localhost"
    - "127.0.0.0/8"

  # Block private IPs
  block_private: false

  # Block cloud metadata endpoints (AWS, GCP, etc.)
  block_cloud_metadata: true

pcap:
  max_packets: 100000
  allow_custom_filters: true
  # Restrict which directories the server is allowed to read pcaps from.
  # (Paths are resolved before checking.)
  allowed_paths:
    - "."
    - "~/Documents"
    - "/tmp"

Environment variables:

NETWORK_MCP_ALLOWED_TARGETS="*.company.com,10.0.0.0/8"
NETWORK_MCP_BLOCKED_TARGETS="*.gov,localhost"
NETWORK_MCP_BLOCK_PRIVATE="true"
NETWORK_MCP_MAX_PACKETS="50000"
NETWORK_MCP_PCAP_ALLOWED_PATHS=".,~/Documents,/tmp"

Why MCP for Network Tools?

Token Efficiency: LLMs have context limits. The server does heavy processing (parsing 100k packets) and returns concise summaries instead of raw data.

Better Reasoning: LLMs excel at deciding what to investigate, not parsing raw output. Structured data leads to better decisions.

Consistency: Server-side processing is deterministic. You don't rely on the LLM to correctly interpret traceroute output every time.

Examples

The examples/ directory contains working examples using Strands Agents:

Quick start:

cd examples
pip install strands-agents strands-agents-tools 'strands-agents[ollama]'
python ollama_agent.py

See examples/README.md for full documentation.

Development

# Clone and install dev dependencies
git clone https://github.com/labeveryday/network-mcp.git
cd network-mcp
pip install -e ".[dev]"

# Run unit tests (integration tests are skipped by default)
pytest

# Run integration tests (requires system tools and/or network access)
pytest -m integration

# Run linting
ruff check .

Project Structure

network-mcp/
├── src/network_mcp/
│   ├── __init__.py
│   ├── server.py           # FastMCP server
│   ├── config.py           # Configuration and security
│   ├── tools/
│   │   ├── connectivity.py # ping, traceroute, dns, port_check, mtr, batch ops
│   │   ├── local.py        # local network info (interfaces, routes, etc.)
│   │   └── pcap.py         # pcap analysis tools
│   └── models/
│       └── responses.py    # Pydantic response models
├── tests/
├── pyproject.toml
└── README.md

Requirements

• Python 3.10+
• System tools: ping, traceroute (standard on most systems)
• Optional: mtr for the MTR tool

License

MIT License - see LICENSE file for details.
