vaults-diagram-tools

Portable Mermaid and source-code diagram toolkit for SVG/JPEG rendering, offline assets, and MCP workflows.

• Homebrewery package page
• GitHub release v0.1.1
• GitHub App
• npm package

What is included

• Mermaid renderer extracted from the Vaults toolchain.
• Source-code to Mermaid diagram generator.
• MCP stdio server with three explicit tools.
• Offline-capable release assets for zip and container distribution.
• Packaging templates for Homebrew, deb/rpm, VS Code, CDN, Docker, and Podman.

Content-management workflows outside diagram generation are not part of this package.

Download / Install

npm registry

Use the published package when you want the normal Node.js toolchain installation:

npm install -D vaults-diagram-tools
npx vaults-mermaid-render path/to/diagram.mmd --output-dir out --manifest out/manifest.json
npx vaults-source-diagrams --source-dir src --output-dir diagrams
npx vaults-diagram-mcp

One-shot with npx

Use --package when the project should not keep the dependency:

npx --yes --package vaults-diagram-tools vaults-mermaid-render path/to/diagram.mmd --output-dir out
npx --yes --package vaults-diagram-tools vaults-source-diagrams --source-dir src --output-dir diagrams
npx --yes --package vaults-diagram-tools vaults-diagram-mcp

npm package from GitHub

Use the GitHub package source when testing a commit before a registry release:

npm install github:malnati/vaults-diagram-tools
npx vaults-mermaid-render path/to/diagram.mmd --output-dir out

GitHub release assets

Release v0.1.1 publishes the npm tarball, zip artifact, and container image:

• vaults-diagram-tools-0.1.1.tgz
• vaults-diagram-tools-0.1.1.zip
• ghcr.io/malnati/vaults-diagram-tools:v0.1.1

Local checkout

Use the checkout for development, validation, or release preparation:

git clone https://github.com/malnati/vaults-diagram-tools.git
cd vaults-diagram-tools
npm ci
npm test
node packages/renderer/render-mermaid-assets.mjs examples/simple/flowchart.mmd --output-dir tmp/rendered
node packages/source-diagrams/source-diagrams.mjs --source-dir packages/mcp --output-dir tmp/source-diagrams
node packages/mcp/server.mjs

Container, Docker, and Podman

Build locally:

docker build -f containers/Containerfile -t vaults-diagram-tools:local .
podman build -f containers/Containerfile -t vaults-diagram-tools:local .

Run a render from a container image:

docker run --rm \
  -v "$PWD/examples/simple:/work/input:ro" \
  -v "$PWD/tmp/container-output:/work/output:rw" \
  ghcr.io/malnati/vaults-diagram-tools:v0.1.1 \
  --output-dir /work/output /work/input/flowchart.mmd

Podman helper scripts are available through vaults-mermaid-podman-build, vaults-mermaid-podman-render, and vaults-mermaid-podman-test.

CDN facade

The package is CLI-first. CDN endpoints expose browser-safe metadata/helpers only; SVG/JPEG rendering still runs through Node.js, MCP, or the container runtime.

https://cdn.jsdelivr.net/npm/vaults-diagram-tools/packaging/cdn/vaults-diagram-tools.mjs
https://unpkg.com/vaults-diagram-tools/packaging/cdn/vaults-diagram-tools.mjs

Command line usage

After installing from npm, run public CLIs directly from node_modules/.bin, npm exec, or npx:

vaults-mermaid-render path/to/diagram.mmd --output-dir out --png --ascii --manifest out/manifest.json
vaults-source-diagrams --source-dir src --output-dir diagrams --langs auto --diagrams dependency,class
vaults-diagram-mcp

One-shot examples:

npx --yes --package vaults-diagram-tools vaults-mermaid-render examples/simple/flowchart.mmd --output-dir tmp/vaults-diagram-tools
npx --yes --package vaults-diagram-tools vaults-source-diagrams --source-dir packages/mcp --output-dir tmp/source-diagrams --render-mode placeholder
npx --yes --package vaults-diagram-tools vaults-diagram-mcp

Local checkout equivalents:

node packages/renderer/render-mermaid-assets.mjs examples/simple/flowchart.mmd --output-dir tmp/vaults-diagram-tools
node packages/source-diagrams/source-diagrams.mjs --source-dir packages/mcp --output-dir tmp/source-diagrams
node packages/mcp/server.mjs

Supported public CLIs are vaults-mermaid-render, vaults-source-diagrams, and vaults-diagram-mcp. Additional package binaries are compatibility entrypoints for older Vaults paths, optional text renderers, and Podman workflows.

MCP tools

vaults-diagram-mcp exposes exactly three tools:

• render_mermaid_text
• render_mermaid_file
• generate_source_diagrams

Example client command:

vaults-diagram-mcp

The MCP adapter passes theme and rendering options through to the same renderer used by the CLI, so a client can request theme: "dracula" and receive .svg + .jpg artifacts.

Dracula diagram examples

The diagrams below were generated by this repository with vaults-mermaid-render --theme dracula; Markdown links the generated assets instead of embedding SVG/JPEG.

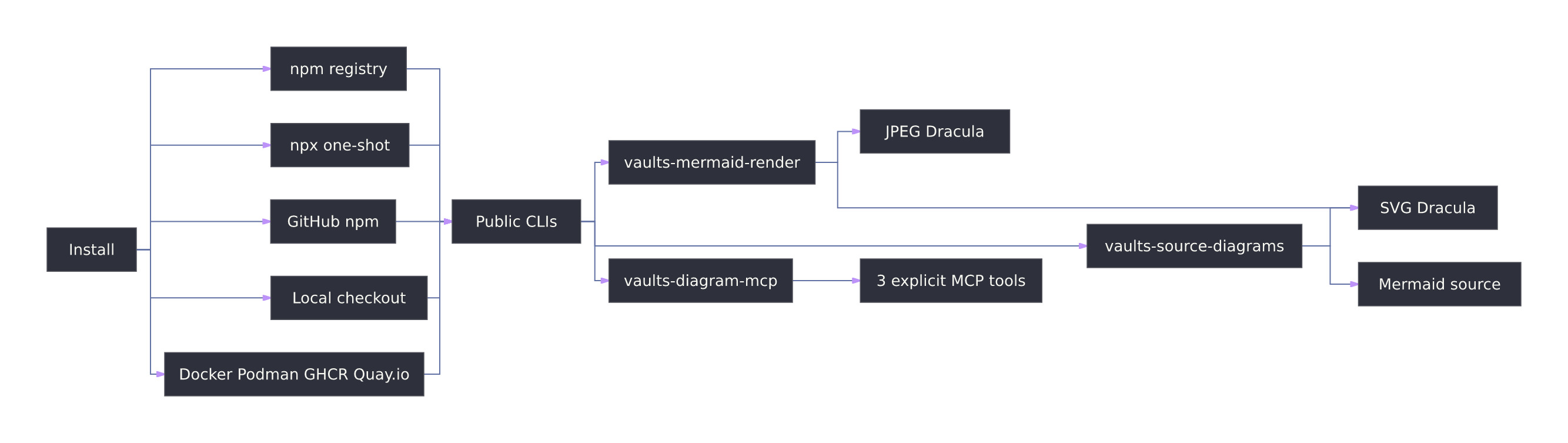

Install and usage flow

• Links: Mermaid source / SVG / JPEG

flowchart LR
  Install["Install"] --> Npm["npm registry"]
  Install --> Npx["npx one-shot"]
  Install --> GitHub["GitHub npm"]
  Install --> Local["Local checkout"]
  Install --> Container["Docker Podman GHCR"]

  Npm --> Cli["Public CLIs"]
  Npx --> Cli
  GitHub --> Cli
  Local --> Cli
  Container --> Cli

  Cli --> Render["vaults-mermaid-render"]
  Cli --> Source["vaults-source-diagrams"]
  Cli --> Mcp["vaults-diagram-mcp"]

  Render --> Svg["SVG Dracula"]
  Render --> Jpg["JPEG Dracula"]
  Source --> Mermaid["Mermaid source"]
  Source --> Svg
  Mcp --> Tools["3 explicit MCP tools"]

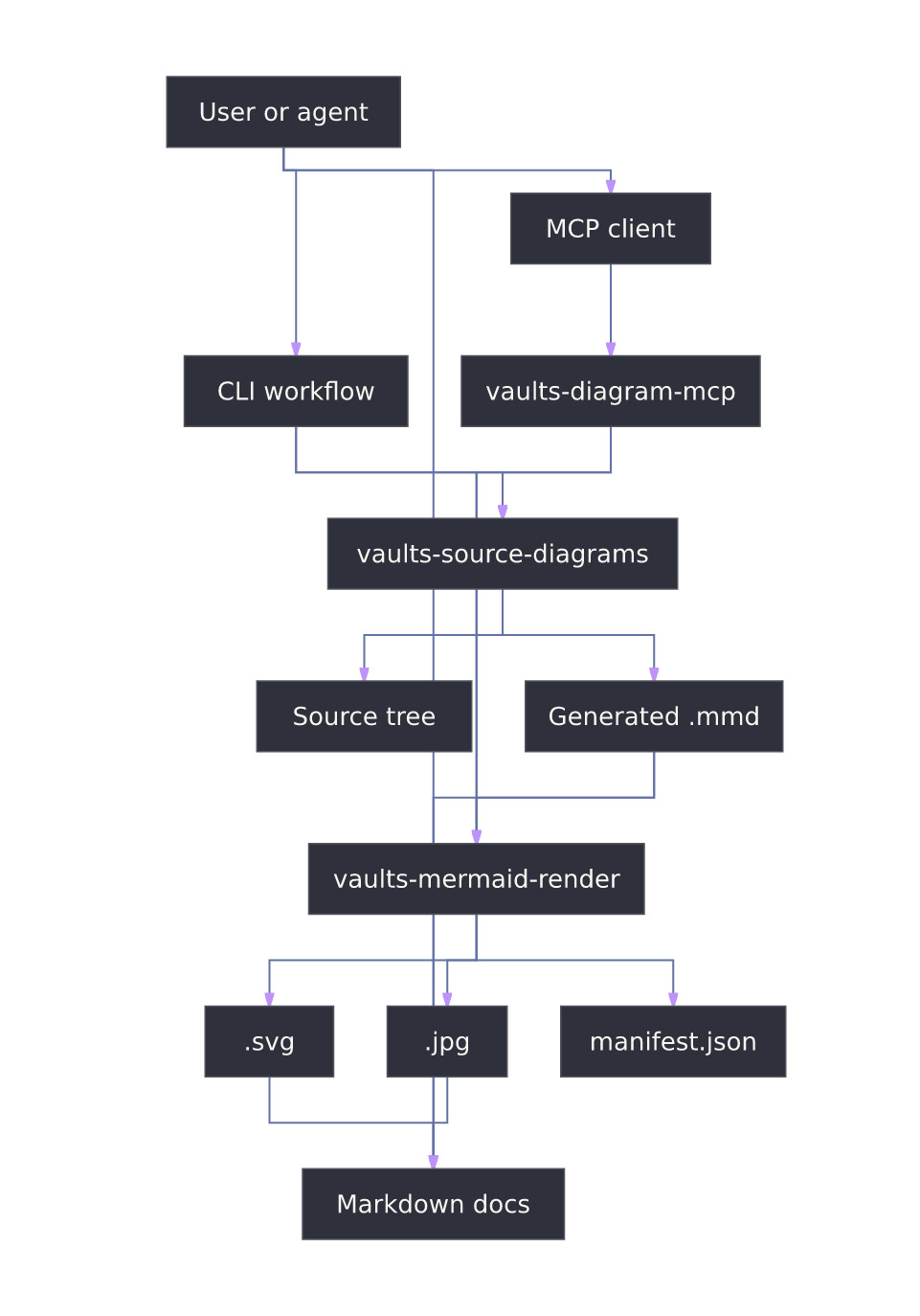

Tooling architecture

• Links: Mermaid source / SVG / JPEG

flowchart TB
  User["User or agent"] --> Markdown["Markdown docs"]
  User --> Cli["CLI workflow"]
  User --> McpClient["MCP client"]

  Cli --> Renderer["vaults-mermaid-render"]
  Cli --> SourceDiagrams["vaults-source-diagrams"]
  McpClient --> McpServer["vaults-diagram-mcp"]
  McpServer --> Renderer
  McpServer --> SourceDiagrams

  SourceDiagrams --> SourceTree["Source tree"]
  SourceDiagrams --> GeneratedMmd["Generated .mmd"]
  GeneratedMmd --> Renderer

  Renderer --> Svg[".svg"]
  Renderer --> Jpeg[".jpg"]
  Renderer --> Manifest["manifest.json"]

  Svg --> Markdown
  Jpeg --> Markdown
  GeneratedMmd --> Markdown

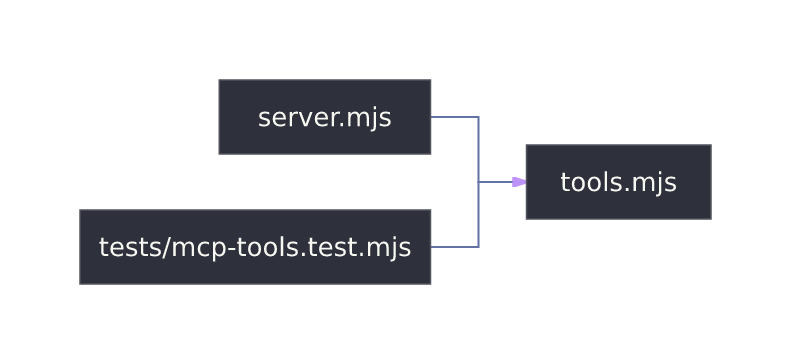

MCP package source graph

• Links: Generated index / Mermaid source / SVG / JPEG

Markdown diagram policy

Generated Markdown should link artifacts and show source in a mermaid fenced block:

#### Diagram title
- Links: [Mermaid source](assets/diagram.mmd) / [SVG](https://raw.githubusercontent.com/malnati/vaults-diagram-tools/main/assets/diagram.svg) / [JPEG](https://raw.githubusercontent.com/malnati/vaults-diagram-tools/main/assets/diagram.jpg)

```mermaid
flowchart TD
  A --> B
```

SVG and JPEG files are delivery artifacts. Markdown should link them instead of embedding them as images by default.

Credits and license compliance

• Project license: MIT.
• Project notices: NOTICE.md.
• Third-party credits and license index: THIRD_PARTY_NOTICES.md.
• License verification: npm run license:check; refresh generated notices with npm run license:generate.
• Dracula-colored documentation diagrams credit the MIT-licensed Dracula Theme palette through beautiful-mermaid.
• Icon data credits include Font Awesome 4, SVG Logos by Gil Barbara, and Lucide Icons via Iconify JSON packages.
• Release artifacts must preserve LICENSE, NOTICE.md, THIRD_PARTY_NOTICES.md, and upstream license files bundled by packaged dependencies or the offline vendor runtime.

Offline vendor runtime

The source tree does not commit node_modules. Build and release jobs create offline vendor assets with:

npm run vendor:refresh
npm run test:vendor:offline

The renderer can run from normal npm dependencies during development, or from packages/renderer/vendor/node when MMDC_VENDOR_ONLY=1.

The default renderer is the Node/JS/WASM vendor path and does not require Chromium, Puppeteer, mmdc, ImageMagick, or npx. The legacy shell wrapper only uses mmdc when explicitly requested with MMDC_RENDER_ENGINE=mmdc; automatic fallback to Puppeteer is disabled.

GitHub App

The public vaults-diagram-tools GitHub App is the installable read-only app surface for this package.

• Install URL: https://github.com/apps/vaults-diagram-tools/installations/new
• Purpose: read-only installs for validating tags, release assets, and package metadata around this repository.
• Permissions: repository contents read-only, plus GitHub metadata access.
• Webhooks: disabled; this release does not run a webhook backend.
• Marketplace: not listed in GitHub Marketplace in v0.1.1.
• Secrets: no private key, client secret, or webhook secret is stored in this repository.

Distribution status

Working in v1:

• npm package publication and GitHub install flow
• Docker/Podman image
• MCP server
• zip release
• GitHub Actions CI, release, CodeQL, and Pages workflows
• Public read-only GitHub App install surface
• Homebrewery package page with searchable tags

Templates in v1:

• Homebrew formula
• deb/rpm through nfpm
• VS Code extension shell
• CDN facade through npm/jsDelivr/unpkg

Current release

v0.1.1 is the current public standalone release of vaults-diagram-tools.
